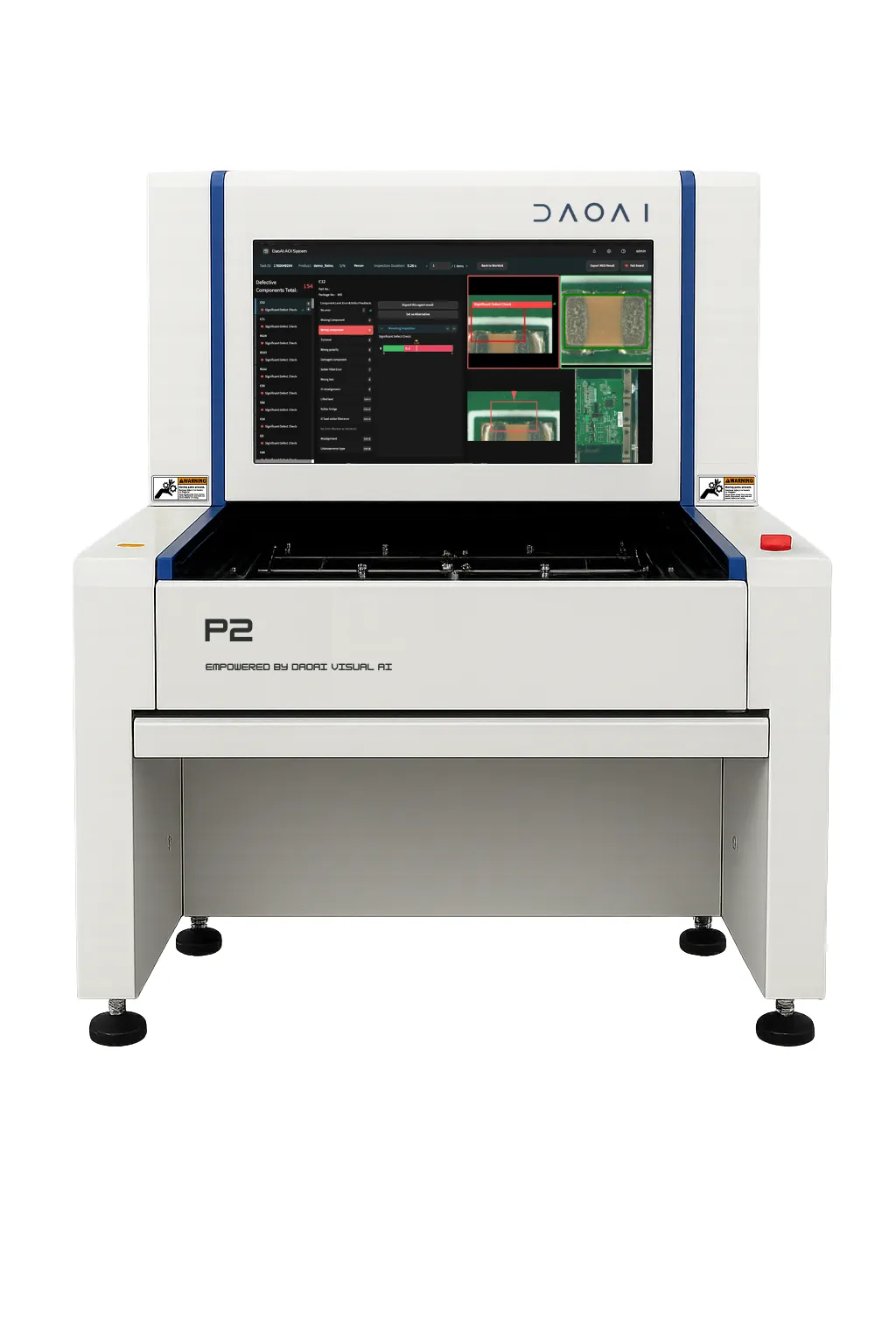

P2

Offline · flagship

Our offline flagship, with higher-resolution imaging.

A 12-megapixel camera provides a resolution of 10 µm per pixel (≈ 0.394 mil per pixel), with the same board capacity and footprint as the P1.

12 MPCamera

10 µm (≈ 0.394 mil)Resolution

470 × 330 mm (≈ 18.5 × 12.99 in)Max board

ManualHandling

Key specifications.

Compare optics, board capacity and handling specifications to find the right fit for your production.

Metric specifications are shown with approximate imperial equivalents.

EVERYTHING ELSE

Warpage and thickness limits, the full inspection item list, software functions and integration detail are in the brochure rather than on this page.

Optics

Camera12 MP

Resolution10 µm per pixel (≈ 0.394 mil per pixel)

LensDual telecentric

Speed0.238 sec per FOV

LightingMulti-spectral high-speed RGB, 6 channel

Conveyor and board

Max board size50 × 50 mm (≈ 1.97 × 1.97 in) – 470 × 330 mm (≈ 18.5 × 12.99 in)

Board thickness0.5 – 5 mm (≈ 0.0197 – 0.197 in)

Max board bowTop 25 mm (≈ 0.984 in), bottom 110 mm (≈ 4.33 in)

Board handlingOffline, manual load. Auto-clamp

Line integrationNone. Offline machine

WHAT IT INSPECTS

Explore our inspection capabilities and plant integration features. Available checks depend on the machine and configuration.

The same core AI software across the range.

Auto-programming, feedback learning, model training and offline operation are standard on P2, not options on a price list. The machines differ in optics and handling.

PROGRAMAI Auto-ProgrammingOne golden board to a running program in 30 seconds to 5 minutes. No CAD required.LEARNFeedback LearningReport a false call, update, run the board again. The rate comes down instead of the threshold.TRAINModel TrainingTrain on your own images, offline, for the defect nobody else inspects for.PLANTIn Your PlantGauge R&R, Cpk, MES export, repair station, offline programming.

Explore the machine range.

OFFLINE 2DOffline · Manual Load

Benchtop AOI that runs beside the line — prototypes, small batches, and rework.

Ideal for High-Mix Production

P1Base model P1L680 × 510 mm (≈ 26.77 × 20.08 in) boards

P212 MP flagship(Viewing)

INLINE 2DInline · Conveyor

Sits in the SMT conveyor line and inspects every board at production speed.

Ideal for Mass Production

P3Single track P3DDual track

3DInline · 3D Measurement

Adds height measurement to catch lifted leads, coplanarity, and solder-volume defects.

Ideal for High-Reliability Boards

P5Single track P5DDual track

THROUGH-HOLEInline · Wave Line

Built for THT and wave-soldered boards — pin protrusion, barrel fill, and joint quality.

Ideal for DIP & Wave Lines

A326 MP · 420 × 420 mm (≈ 16.54 × 16.54 in)

Send us a board and we will tell you which machine it needs.

Half an hour with one of our engineers. Board size, mix and cycle time decide this, not a brochure.
