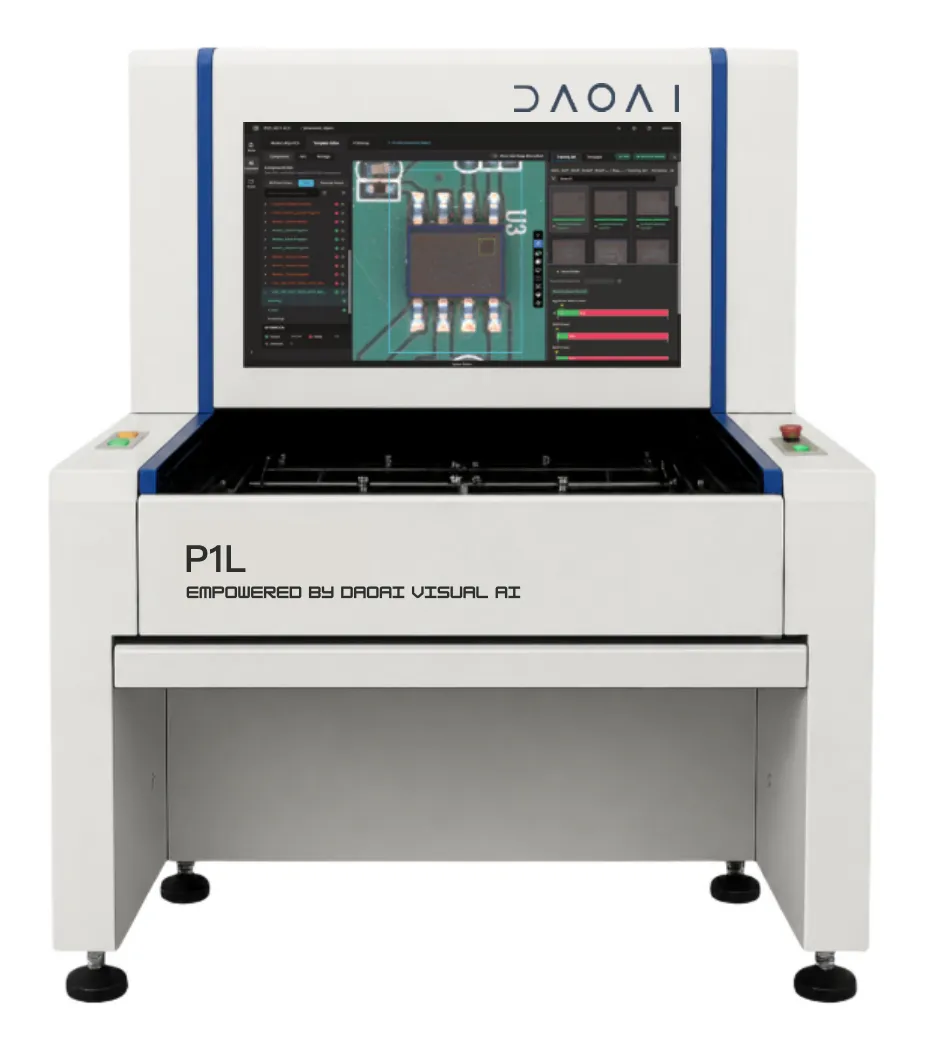

P1L

Offline · large format

The offline machine for large boards.

A larger inspection area for boards that exceed the P1’s capacity. Manual loading, with the same core AI software.

5 MPCamera

15 µm (≈ 0.591 mil)Resolution

680 × 510 mm (≈ 26.77 × 20.08 in)Max board

ManualHandling

Key specifications.

Compare optics, board capacity and handling specifications to find the right fit for your production.

Metric specifications are shown with approximate imperial equivalents.

EVERYTHING ELSE

Warpage and thickness limits, the full inspection item list, software functions and integration detail are in the brochure rather than on this page.

Optics

Camera5 MP

Resolution15 µm per pixel (≈ 0.591 mil per pixel)

LensDual telecentric

Speed0.238 sec per FOV

LightingMulti-spectral high-speed RGB, 6 channel

Conveyor and board

Max board size50 × 50 mm (≈ 1.97 × 1.97 in) – 680 × 510 mm (≈ 26.77 × 20.08 in)

Board thickness0.5 – 5 mm (≈ 0.0197 – 0.197 in)

Max board bowTop 25 mm (≈ 0.984 in), bottom 110 mm (≈ 4.33 in)

Board handlingOffline, manual load. Auto-clamp

Line integrationNone. Offline machine

WHAT IT INSPECTS

Explore our inspection capabilities and plant integration features. Available checks depend on the machine and configuration.

The same core AI software across the range.

Auto-programming, feedback learning, model training and offline operation are standard on P1L, not options on a price list. The machines differ in optics and handling.

PROGRAMAI Auto-ProgrammingOne golden board to a running program in 30 seconds to 5 minutes. No CAD required.LEARNFeedback LearningReport a false call, update, run the board again. The rate comes down instead of the threshold.TRAINModel TrainingTrain on your own images, offline, for the defect nobody else inspects for.PLANTIn Your PlantGauge R&R, Cpk, MES export, repair station, offline programming.

Explore the machine range.

OFFLINE 2DOffline · Manual Load

Benchtop AOI that runs beside the line — prototypes, small batches, and rework.

Ideal for High-Mix Production

P1Base model

P1L680 × 510 mm (≈ 26.77 × 20.08 in) boards(Viewing)
