Precision Meets Intelligence: Introducing the DaoAI P1&P2 Offline PCBA AI AOI

For electronics manufacturers managing high-mix, low-volume production or requiring dedicated offline batch testing, ...

By DaoAI Team

For electronics manufacturers managing high-mix, low-volume production or requiring dedicated offline batch testing, flexibility and precision are paramount. Enter the DaoAI P1& P2, the Offline 2D PCBA AI AOI system designed to bring the power of Visual Foundation Models to your quality control process

1.AI-Driven Efficiency: Setup in Minutes

The DaoAI P1 &P2 solve one of the biggest pain points in AOI: setup time.

No CAD Required: You can complete modeling in just 5 minutes using a single "Golden Sample".

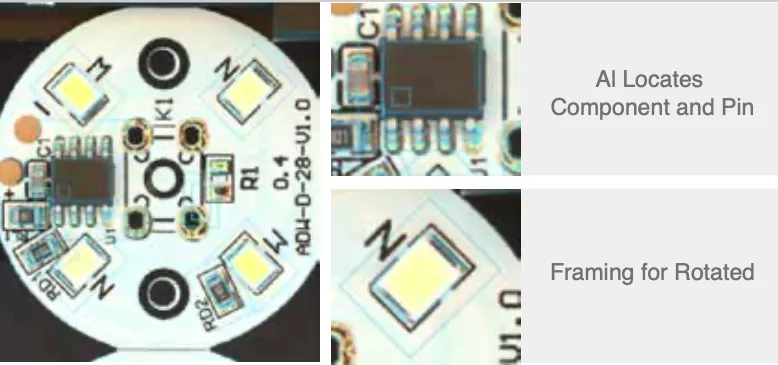

Automated Programming: The AI automatically detects component positions and generates bounding boxes without needing coordinate data.

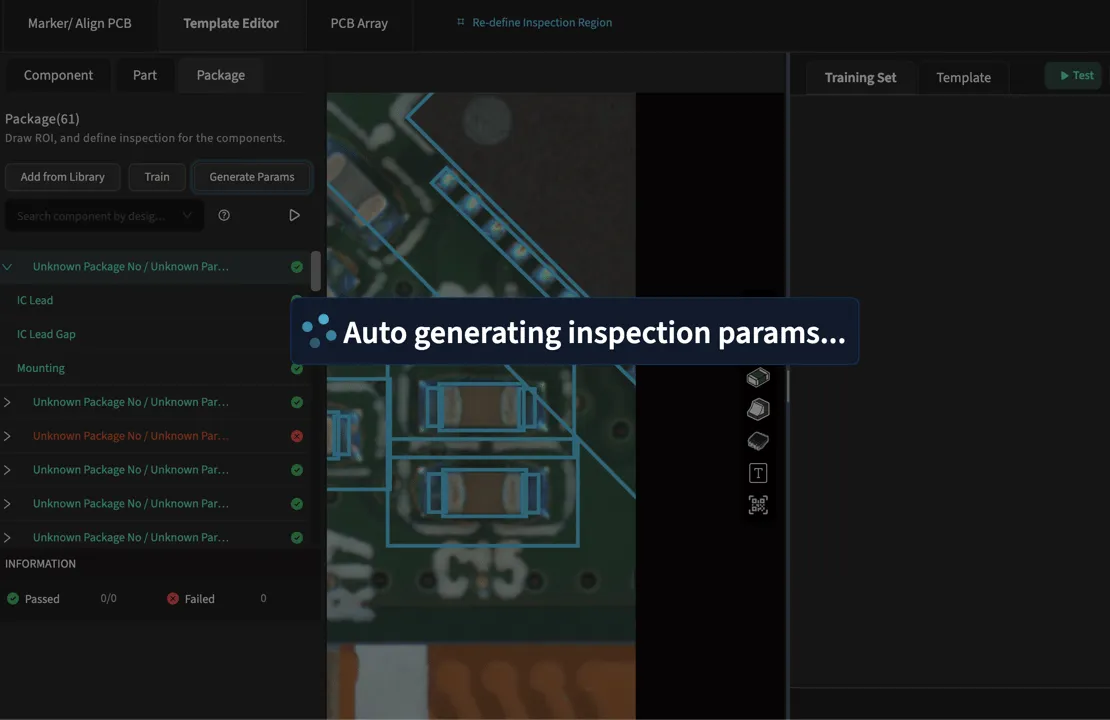

Intelligent Thresholds: Instead of manual tuning, the AI learns color distributions from good parts to auto-generate inspection thresholds.

2.Visual AI: Smarter Detection

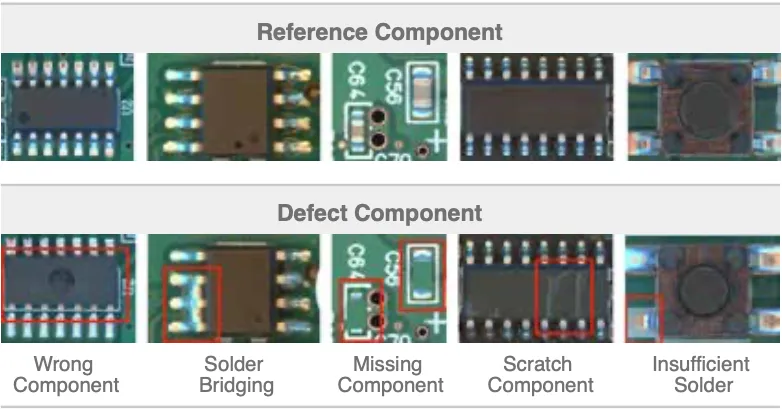

Traditional algorithms often struggle with "overkill" (false alarms) or missed defects when backgrounds and components have similar colors. The P1 & P2 uses Visual AI to accurately identify:

Component Defects: Missing parts, wrong components, polarity errors, and scratches.
Solder Issues: Solder bridging, insufficient solder, tombstoning, and more.

Crucially, the system features feedback learning. When an operator confirms a false alarm, the P1 & P2

learns from this input to prevent future misjudgments, progressively becoming smarter and more efficient.

3.Built for Versatility

The P1 & P2 are designed to fit seamlessly into diverse production environments.

Flexible Board Handling: Both support PCB sizes ranging from 0.5x50mm up to 470x330mm, with auto-clamping hardware included.
Process Coverage: Whether you are inspecting Solder Paste, Red-Glue (SMT adhesive), or Post-Wave Soldering assemblies, the P1 & P2 handle it all.
Advanced Optics: It utilizes dual telecentric optical lenses combined with multispectral ultra-high-speed RGB six-channel lighting to deliver distortion-free images and optimal contrast, regardless of component material.
Resolution：

The DaoAI P1 & P2 brings top-tier AI inspection capabilities to an offline platform, offering the perfect balance of performance and flexibility for manufacturers who demand zero defects.
