To reduce AOI false calls, fix causes in this order: confirm the golden sample is actually good, bring lighting and optics back to spec, clean up the component library, then re-tune thresholds window by window against IPC-A-610. Loosening limits across the board is not a fix. It trades false calls for escapes. And if false calls climb back after every changeover or new component lot, the wall you keep hitting is the rule-based algorithm itself, which is an architecture problem rather than a tuning problem.
A false call (also written false positive, or overkill) is the AOI flagging a good board as defective. Each one sends a board to a human for a second look. A machine that cries wolf fifty times a shift wastes labor. It also teaches operators to stop believing it, and that is the expensive part. This article covers where false calls come from, what they cost, what you can realistically fix on a traditional AOI, and what changes when the inspection logic is AI instead of rules.
What causes AOI false calls?
AOI false calls come from inspection rules that cannot absorb normal process variation. The usual sources are thresholds set tighter than the acceptance criteria require, lighting drift, component lot changes, and board warpage. A few component types go further and break color-based algorithms outright: bodies that match the laminate color, plus the dense surface markings on chip inductors and crystal oscillators. Those deserve special attention, because no amount of threshold work fixes them.
Most false-call discussions stop at "thresholds too tight." Fair, but that is the shallow end. The full list looks like this:
- Over-tight thresholds. Programmers tune conservatively because an escape gets you a customer call, while a false call merely annoys the verify station. Repeat that instinct across a few hundred component windows and the program is biased toward overkill before the first board runs.
- Optical and lighting drift. Lamps age. Lenses collect dust. Ambient light changes between shifts. Pixel and color comparisons read all of it as change on the board.
- Component lot-to-lot variation. A reel from a second source arrives with a slightly different body finish or a new marking font. The parts are fine; the pattern match is not.
- Board warpage. A bowed board shifts components at the edge of their windows and trips offset and presence checks.

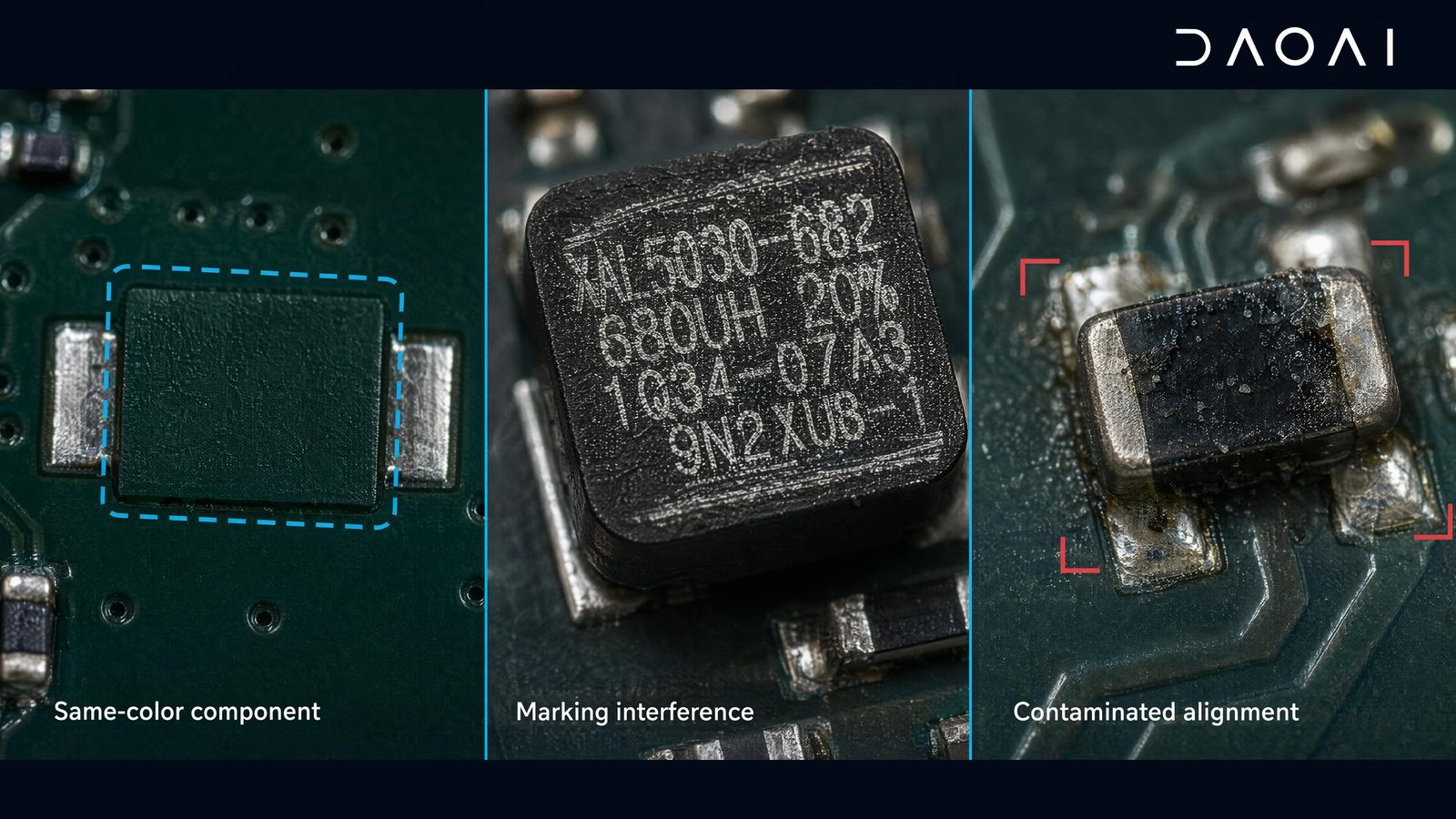

- Same-color components. When the component body matches the PCB laminate color, RGB-based detection can fail outright, because the algorithm cannot separate part from board. DaoAI's brochure documents this failure mode and the fix (more below).
- Marking interference on black inductors and crystal oscillators. These two families are notorious false-positive generators. Dense white-on-black laser markings look like scratches or damage to a rule engine.
- Contamination confusing alignment. Dust or flux residue can degrade the alignment step itself, so a correctly placed part gets measured as offset.
Run a Pareto on your false-call reasons. If the last three dominate, you have algorithm-class problems, and tuning will not reach them.
What do false calls actually cost?
False calls cost money in three layers: re-inspection labor (an operator re-judging every flagged board), line stoppage while boards queue at the verify station, and operator desensitization, which is the least visible layer and the most expensive one. When most alarms are false, humans start rubber-stamping, and real defects ride through on credibility the machine has already spent. DaoAI puts re-inspection and stoppage costs at roughly USD 15,000 to 40,000 per operator per year (DaoAI-reported).

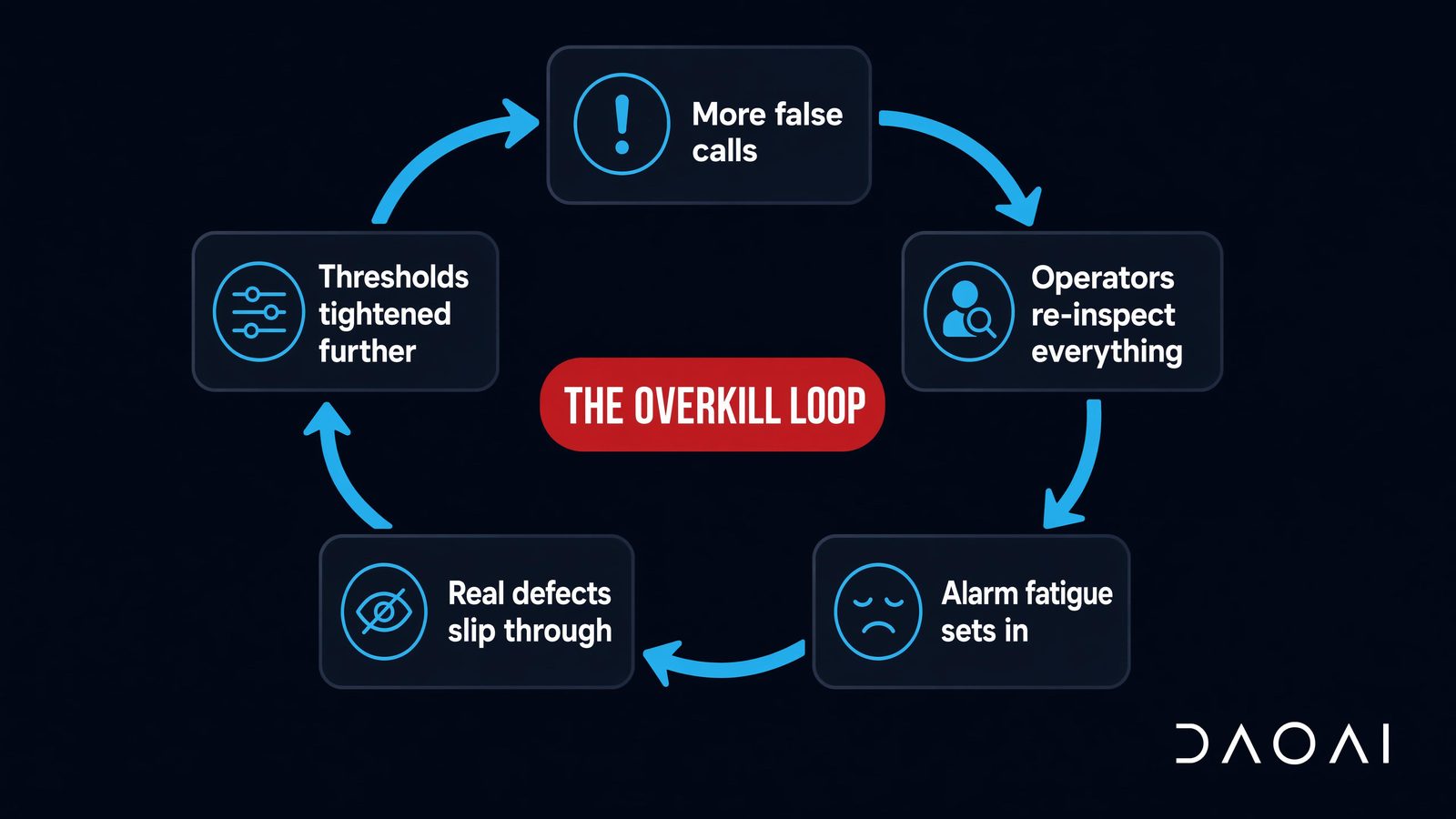

The third layer deserves a closer look because it inverts the purpose of inspection. An AOI drowning in overkill stops saving labor and starts producing escapes of its own, since the human verify step it leans on has gone numb. Quality teams then tighten thresholds to catch what slipped, which produces more false calls, which deepens the numbness. That loop is why "we'll just re-inspect the flags" never stays cheap.
There is a slower cost too. Once false calls dominate, engineers stop trusting anything the AOI reports. Defect trends and SPC charts built on its output turn into noise, and the machine ends up ignored. An ignored inspection system is a very expensive way to not inspect boards.
How do you reduce false calls on a traditional AOI?
On a traditional AOI, reduce false calls by fixing the measurement system before touching thresholds. Re-verify the golden sample, restore lighting to spec, and update the component library for the lots actually on the line. Then re-tune limits window by window against IPC-A-610 criteria, starting from a Pareto of the worst offenders, and check repeatability so you know the remaining variation belongs to the process and not to the machine.
Done in that order, this recovers real ground:
- Audit the reference before the rules. If the golden sample or taught images have drifted from current good product (an ECO, a supplier change, a new solder profile), every downstream judgment inherits the error. Re-teach against a verified current board first.
- Restore optics and lighting. Clean the lenses, check lamp output against commissioning values, recalibrate white balance. Boring work. It is also, in a lot of shops, the single biggest win available.
- Component library hygiene. Update package entries when lots or vendors change, and retire stale ones. Give the library an owner. Libraries decay fastest when they belong to everyone.
- Tune from the Pareto, against the standard. Rank false-call sources and fix the worst windows first. Anchor accept and reject limits to IPC-A-610 (current revision IPC-A-610J, 2024) instead of tuning until the alarms go quiet. That keeps you defensible with customers while you loosen windows that were genuinely over-tight.
- Verify repeatability. Run a Gage R&R style check on the AOI as a measurement system. If the same board produces different calls run to run, threshold work is guesswork until that instability is fixed.
- Standardize the verify station. Give re-inspection operators the same acceptance criteria and reference photos, per IPC-A-610, so a "false call" means the same thing on every shift. Otherwise the metric you are trying to improve is itself unreliable.
None of this is permanent, though. Every changeover, new product, and new component lot hands some of the work back. High-mix shops feel it most, because the tuning debt comes due at every NPI.
How does AI reduce false calls?
AI reduces false calls by judging components in feature space instead of pixel space. A trained vision model extracts shape, structure, texture, and spatial context, then scores anomalies against what a good board actually looks like, rather than comparing raw pixels against fixed rules. That makes the judgment tolerant of lighting drift, cosmetic lot variation, and board warpage, which are exactly the variations behind most rule-based false calls (DaoAI-reported; validate on your own boards).
Mechanism by mechanism, mapped to the root causes above:
| Root cause | Traditional mitigation | AI mechanism (DaoAI-reported) |
|---|---|---|
| Lighting/optical drift | Re-calibrate, re-tune regularly | Feature-space inference; model output does not track raw RGB shifts |
| Lot-to-lot component variation | Update library per lot | Features generalize across cosmetic variation, no per-lot re-teach |
| Board warpage / position tolerance | Widen windows, accepting escape risk | High tolerance for positional variation in feature extraction |
| Same-color components | Often unsolvable with RGB rules | Multi-dimensional feature embeddings beyond RGB separate part from laminate |
| Inductor/oscillator markings | Mask regions or live with the noise | Multi-feature discriminator separates marking signatures from defect signals |
| Contaminated alignment | Manual review | AI localization stays accurate despite surface contamination |
| Over-tight thresholds | Periodic manual re-tuning | Thresholds generated from the golden board, then refined by feedback |
The second structural difference is the feedback loop. On DaoAI's system, when an operator marks a flagged image as a false call, that judgment feeds back into the model and the parameters update. Each line's own production becomes its training data, so the false-call rate trends down with use instead of drifting up. (The golden-board workflow behind this is covered in AOI programming without CAD files.) DaoAI reports up to 80% fewer false calls than traditional AOI, alongside detection accuracy of 98% or higher, from production deployments including a major Asian electronics manufacturer (DaoAI-reported figures; confirm them on your own boards during a demo).
The acceptance standard itself does not move. Accept and reject criteria still map to IPC-A-610. What the model changes is how reliably the system can tell "different but acceptable" from "defective." For the detection side of the same architecture, see how single-image AI detection handles defect variety.
When is tuning no longer enough?
Tuning is no longer enough when false-call work has turned into a permanent engineering function instead of a commissioning task. The signals: every changeover needs thresholds re-tuned, false calls rebound after each component lot or vendor change, re-inspection has become a staffed station rather than an exception, and escapes are showing up while overkill stays high. At that point the constraint is the rule-based architecture, and more tuning buys you weeks.
A practical way to frame the decision. Tuning is still the right tool if your product mix is stable, NPIs are rare, the library has an owner, and false calls actually dropped after the maintenance sequence above. Stable high-volume lines with disciplined programs run traditional AOI well. That is an honest fit, and the fuller comparison covers it.
Architecture is the constraint if false-call burden scales with your mix. Every NPI restarts the tuning debt. Second-source parts break pattern matches. Your Pareto is dominated by same-color parts, marked inductors and oscillators, or lighting drift, and those causes live below the threshold layer where tuning cannot reach. A simple test: if you are paying engineers to buy back the same false-call reduction every month, the fix is rented, not owned. An architecture that learns from feedback buys it once.
Frequently Asked Questions
What is a normal false call rate for AOI?
There is no single benchmark worth trusting, because shops measure on different bases: per component (PPM), per board, or as a share of total calls. Mix, board complexity, and threshold philosophy move the number by orders of magnitude. The useful discipline is to pick one basis, baseline each line, and watch the trend. A rising false-call trend on a stable process means the program is drifting, not the product.
What is the difference between a false call and an escape?
A false call flags a good board as defective. An escape passes a real defect. On rule-based systems the two trade against each other: tighten thresholds and false calls rise, loosen them and escapes rise. High false-call rates also cause escapes indirectly, by desensitizing the operators doing re-inspection.
Will loosening thresholds to cut false calls let real defects through?
Blanket loosening will. That is buying quiet with escapes. Loosen only windows proven over-tight against IPC-A-610 criteria, and only after reference, lighting, and library issues are fixed. If a window cannot be made quiet without crossing the standard, the limit you have found is the algorithm's ability to absorb variation, not your tuning skill.
How much data does AI AOI need before false calls drop?
Less than most engineers expect. DaoAI's system starts from a single golden board. The model arrives pre-trained on more than one million real production images and adapts to your board from that one sample, then keeps improving from operator feedback during normal production (DaoAI-reported). There is no data-collection project standing between installation and first inspection.
Can false calls ever reach zero?
No system honestly promises zero, because inspection always balances sensitivity against noise. The realistic goal is a false-call burden low enough that re-inspection is an exception rather than a station, while escapes stay at zero. Judge any vendor claim, including ours, by trend data on your own boards.
