Inspect with lightning speed

DaoAI 3D Inspection Cameras provide 5-megapixel point clouds, capturing the finest detail across a wide range of applications. Equipped with onboard GPUs, the cameras provide 3D snapshot scanning and inspection with lightning speed.

Highlights
capturing performance icon

Detect

Capture finest details

capturing performance icon

Inspection

Reliable defects detection

Fast full-field scan rate

capturing performance icon

DaoAI 3D Cameras

High thermal stability

Easy to use and integrate

Industrial grade; IP65 rated enclosure

capturing performance icon
Detect

Capture finest details

Sample point cloud of an earpod case

Sample point cloud of a reflective metal part

Sample point cloud of a stair object with 0.3, 0.6, 1.0, 1.5, 0.9, 0.2mm height

Sample point cloud of a circuit board

Sample point cloud of a circuit board

Helps to capture the finest detail on objects with dark or contrasting surface.

Light engine installed to enable high resistance to ambient light.

Colour correction, brightness and contrast control, and more. Use for outliers removal, holes filling, and further improvement on point cloud fidelity.

5megapixels
captures fine details in high resolution
99%
Point cloud correctness and fewer outliers
Inspect

Reliable defects detection

Guaranteed accurate 3D point cloud capture and reliable defects detection for automotive manufacturing.

Fast full-field scan rate

Powered by NVIDIA® Jetson XAVIER™ NX

DaoAI 3D cameras use onboard GPUs to accelerate image processing, capture 3D point cloud data within a second, and improve productivity by minimizing the cycle time for your tasks.

Robustness to temperature variation and operates at

0°- 40°C

Every DaoAI camera undergoes a 58-hour temperature test to ensure dependable mechanical and thermal stability. Each camera is calibrated using advanced floating thermal calibration for temperatures of 0°C - 40°C.

Dual Camera

further improves thermal stability

Dual-cam setup further improves the 3D camera thermal stability. Temperature-induced measurement error is minimized for seamless year-round operation.

Easy to use and integrate

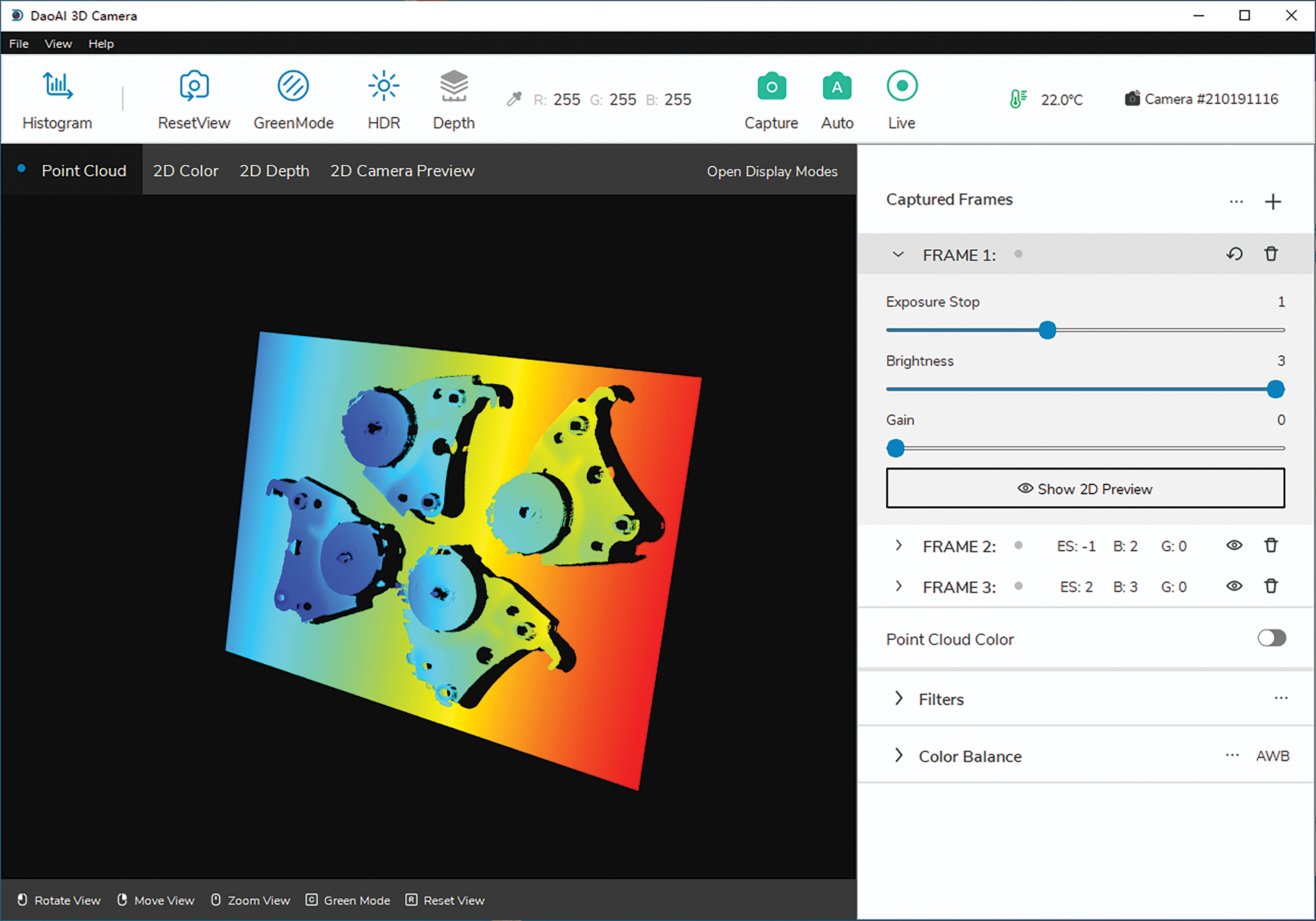

DaoAI’s camera software (Camera Studio) provides an intuitive, quick camera setup experience and works on any computer or operating system. The camera can be set up and put to work in as little as 3 minutes.

C# and C++ APIs are available.

Industrial grade and IP65 rated enclosure

All cameras are industrial-grade and shielded against dust and low-pressure water jets from any direction.

Inspection Camera XS

Inspection Camera XS

IN-XS

Super high-resolution 3D snapshot inspection camera for consumer electronics.

Inspection Camera Small

Inspection Camera Small

IN-S

Super high-resolution 3D snapshot inspection camera for small objects.

Inspection Camera Medium

Inspection Camera Medium

IN-M

Super high-resolution 3D snapshot inspection camera for automotive industry.

SPECS

Model
IN-XS
IN-S
IN-M
Working Distance

100 - 140 mm

150 - 270 mm

270 - 450 mm

FOV @ optimal WD

83 x 60 mm

132 x 106 mm

225 x 185 mm

Baseline

100 mm

100 mm

120 mm

Point Cloud Resolution/ Visual Output

5 Megapixels

5 Megapixels

5 Megapixels

Calibration Accuracy

20 um

25 um

30 um

Z Repeatability Accuracy

5 um

8 um

15 um

3D Capture Time (seconds)

2s

2s

2s

Camera Setup

Dual-cam; Blue LED

Dual-cam; Blue LED

Dual-cam; Blue LED

Dimension

224 x 286 x 98 mm

208 x 286 x 98 mm

208 x 286 x 98 mm

Weight

3.8 kg

3.7 kg

3.7 kg

Connection

Ethernet

Ethernet

Ethernet

Operating Temperature

0 – 40°C

0 – 40°C

0 – 40°C

Cooling

Passive Cooling

Passive Cooling

Passive Cooling
